Product for mounting and dismounting and for maintenance

THAP 400E

Diámetro interior:

Valor campo personalizado

Diámetro exterior:

Valor campo personalizado

Ancho:

Valor campo personalizado

-€

Referencia: THAP 400E Categorías: Bombas hidráulicas e inyectores de aceite, Herramientas hidráulicas de montaje y desmontaje, Productos de mantenimiento

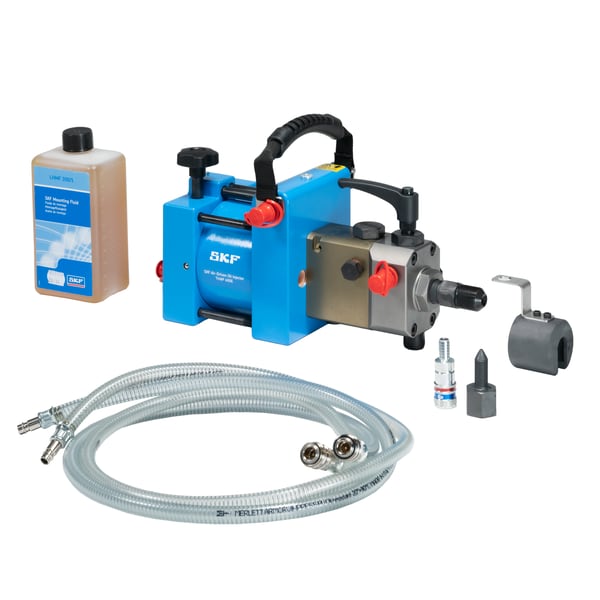

The THAP 400E air-driven oil injector can be used for mounting and dismounting SKF OK Couplings, large pressure joints such as bearings, flywheels, couplings and railway wheels. It is also suitable for similar applications for pressures up to 400 MPa/58,000 psi. The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismounting fluids are recommended for use with the THAP 400E.

PRODUCTOS RELACIONADOS

ref.

TMMP 15

Product for mounting and dismounting and for maintenance

El extractor de garras de alto rendimiento SKF TMMP 15 es un extractor mecánico de tres brazos que está diseñado para desmontar rodamientos. El extractor se caracteriza por su exclusivo sistema de brazo pantógrafo, que proporciona un agarre excepcional y ayuda a contrarrestar la desalineación durante las operaciones de desmontaje. El extractor está diseñado para realizar trabajos de desmontaje fáciles, rápidos y seguros de rodamientos, y componentes similares con ajuste de interferencia en el eje.

ref.

729865 B

Product for mounting and dismounting and for maintenance

SKF Feeler Gauges 729865 B are designed to measure clearances. A typical application is to measure the internal clearance of spherical roller bearings during the mounting process. The 729865 B consists of 29 blades of 200 mm (8 in.) in a steel cage.

ref.

1077589

Product for mounting and dismounting and for maintenance

SKF Pressure Gauges are designed to fit SKF Hydraulic Pumps and SKF Oil Injectors. The gauges are all liquid filled and equipped with a restriction screw in order to absorb any sudden pressure drop thereby preventing damage. Safety glass and blowout discs are standard for all gauges and all have dual scales (MPa/psi).For pressures up to 3000 bar (300 MPa/43,500 psi)

ref.

HN 7

Product for mounting and dismounting and for maintenance

The SKF Hook spanner, size 7, is designed for easy tightening and loosening of lock nuts. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. They fit on a variety of lock nuts with outer diameter(s) 52 – 55 mm. To be more specific for locknuts: KM 7, KMK 7, KMFE 7, KMT 6, KMT 7, N 07 and M28x1,5, M30x1,5, M32x1,5, M35x1,5 (DIN 1804).

ref.

HN 17

Product for mounting and dismounting and for maintenance

The SKF Hook spanner, size 17, is designed for easy tightening and loosening of lock nuts. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. They fit on a variety of lock nuts with outer diameter(s) 110 – 115 mm. To be more specific for locknuts: KM 17, KMK 17, KMFE 17, KMT 16, AN 17 and M72x1,5, M75x1,5, M80x2 (DIN 1804).

ref.

HN 15

Product for mounting and dismounting and for maintenance

The SKF Hook spanner, size 15, is designed for easy tightening and loosening of lock nuts. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. They fit on a variety of lock nuts with outer diameter(s) 95 – 100 mm. To be more specific for locknuts: KM 15, KMK 15, KMFE 15, KMT 13, KMT 14, AN 15 and M62x1,5, M65x1,5, M68x1,5, M70x1,5 (DIN 1804).

ref.

TMMP 3X185

Product for mounting and dismounting and for maintenance

One of the most common ways to dismount small to medium size bearings is to use a mechanical puller. The SKF TMMP 3X185 is a three arm puller for small to medium sized bearings. It helps the user to safeguard against damage to the bearing or to the bearing seating during dismounting. The SKF Standard Jaw Pullers TMMP series allow for easy and fast dismounting jobs and safe puller operation.

ref.

TMMP 3X230

Product for mounting and dismounting and for maintenance

One of the most common ways to dismount small to medium size bearings is to use a mechanical puller. The SKF TMMP 3X230 is a three arm puller for small to medium sized bearings. It helps the user to safeguard against damage to the bearing or to the bearing seating during dismounting. The SKF Standard Jaw Pullers TMMP series allow for easy and fast dismounting jobs and safe puller operation.

ref.

729832 A

Product for mounting and dismounting and for maintenance

Racor de conexión rápida para conectar bombas hidráulicas y sus mangueras de presión a la aplicación. Los racores de conexión rápida están disponibles para diferentes presiones máximas de trabajo. Las mangueras de presión, que se conectan a la bomba, deben estar provistas de un acoplamiento de conexión rápida y en el lado de la aplicación debe colocarse el racor de conexión rápida correspondiente.

ref.

729124

Product for mounting and dismounting and for maintenance

El SKF 729124 está destinado principalmente a las tuercas hidráulicas SKF (más pequeñas que HMV 55E) para montar rodamientos o componentes donde se requiere una presión máxima de 100 Mpa (14 500 psi). El 729124 también puede utilizarse para aplicaciones de inyección de aceite para extraer rodamientos de elementos rodantes.
